7 Critical Data Visualization Mistakes Sabotaging Your Algorithmic Trading Strategies (And How to Fix Them)

Imagine pouring weeks into coding a promising mean-reversion strategy in Python, only to watch it deliver mediocre results in live trading. The backtest looked spectacular on your screen—with a smooth equity curve climbing steadily upward. Yet reality disagreed.

The culprit? Often, it's not the strategy logic itself, but how you visualized the data. Poor visualizations hide risks, exaggerate performance, and lead to overconfident decisions that cost real capital.

In algorithmic trading, data visualization is your bridge between raw numbers and actionable insight. It helps you spot patterns, validate hypotheses, and communicate strategy behavior. But small mistakes can create dangerously misleading pictures.

In this comprehensive guide, you'll learn the most damaging visualization errors beginner to intermediate algo traders make, why they matter for strategy development and risk management, and exactly how to avoid them using practical Python code.

Whether you're backtesting with pandas, optimizing parameters, or monitoring live execution, mastering these concepts will make your trading systems more robust and your decisions sharper.

Why Data Visualization Matters More Than You Think in Algo Trading

Effective visualization isn't just about pretty charts—it's a core part of quantitative analysis. It reveals overfitting, highlights regime shifts, and exposes hidden correlations that summary statistics alone miss.

Ignoring proper visualization practices often leads to:

• False confidence in backtested performance
• Missed opportunities to improve risk-adjusted returns
• Difficulty diagnosing why a strategy fails in production

Let's dive into the mistakes that silently undermine many trading systems.

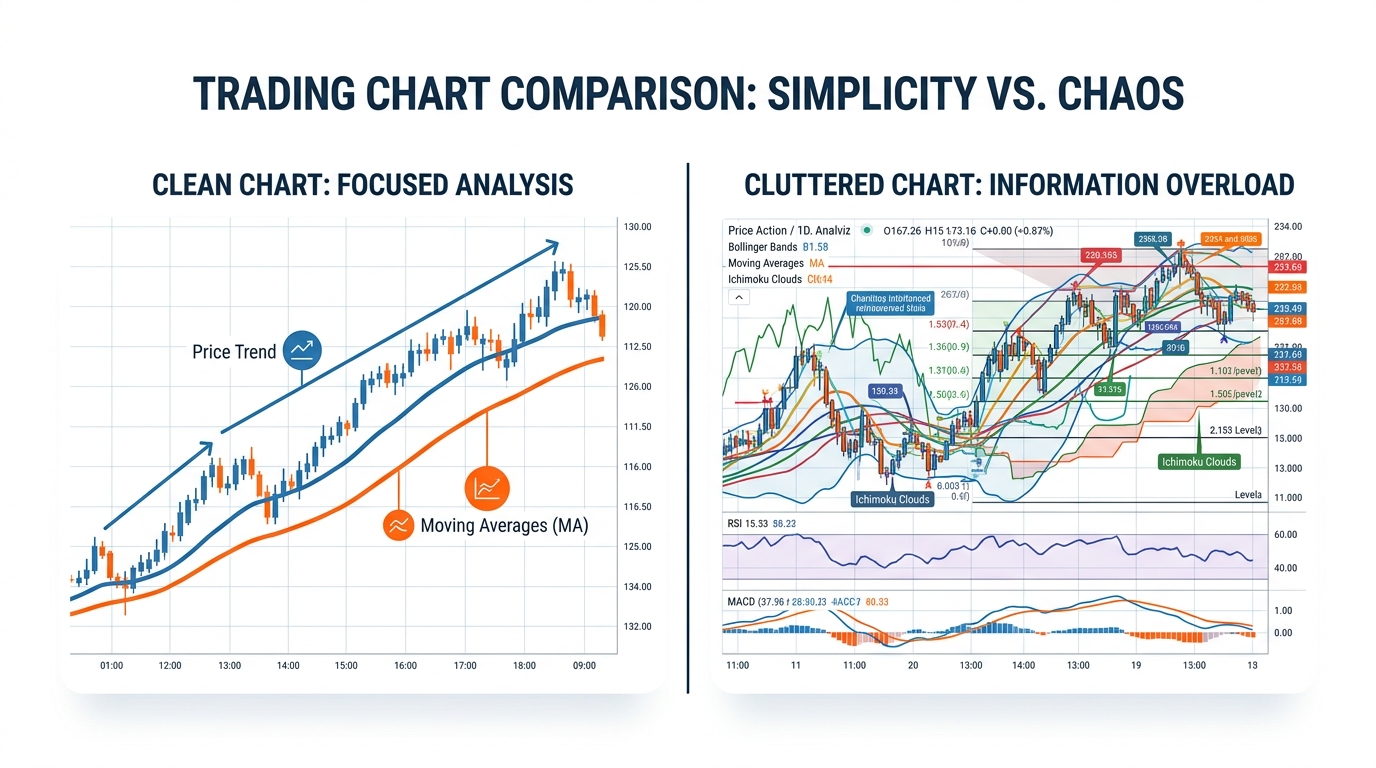

Mistake 1: Overplotting – When Your Charts Become Unreadable Noise

Have you ever stared at a price chart with dozens of indicators layered on top and felt completely overwhelmed?

This is overplotting, and it's one of the most frequent issues in trading dashboards. Adding every technical indicator—RSI, MACD, Bollinger Bands, moving averages, volume—creates visual chaos.

Why it hurts trading systems: You miss critical price action and subtle regime changes. Overloaded charts make it harder to validate entry/exit signals during backtesting.

How to Fix It: Layering and Selective Visualization

Start simple. Focus on price action first, then add one or two complementary indicators.

Here is a clean approach using Matplotlib:

1import pandas as pd
2import matplotlib.pyplot as plt
3import numpy as np
4
5# Assume df is your OHLC data with indicators pre-calculated
6fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(12, 8), gridspec_kw={'height_ratios': [3, 1]})
7
8# Price and key indicators on primary axis
9ax1.plot(df.index, df['Close'], label='Close Price', color='blue', linewidth=2)
10ax1.plot(df.index, df['SMA_50'], label='50-day SMA', color='orange', alpha=0.8)
11ax1.plot(df.index, df['SMA_200'], label='200-day SMA', color='red', alpha=0.8)

ax1.set_title('Clean Price Action with Key Moving Averages')

ax1.legend()

ax1.grid(True, alpha=0.3)

1# Volume subplot
2ax2.bar(df.index, df['Volume'], color='gray', alpha=0.6)

ax2.set_ylabel('Volume')

1plt.tight_layout()
2plt.show()

What this code does: It creates a two-panel chart separating price from volume, using clear colors and minimal overlays.

Trading implication: The cleaner view makes it easier to spot golden cross signals or divergence without distraction. In live trading, this clarity reduces hesitation and improves execution discipline.

Mistake 2: Using Linear Scales for Non-Linear Market Data

Why does your equity curve look deceptively smooth while real drawdowns feel catastrophic?

Many traders plot returns or prices on linear scales, ignoring the multiplicative nature of markets. A 50% loss requires a 100% gain to recover—something linear charts obscure.

The Math Behind Proper Scaling

Use logarithmic scales or plot percentage returns for better insight:

$Log Return_t = \log\left(\frac{P_t}{P_{t-1}}\right)$

This transforms multiplicative processes into additive ones, making volatility and drawdowns more visible.

1# Comparing linear vs log scale equity curves
2fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 6))
3
4# Linear scale (misleading)

ax1.plot(equity_curve.index, equity_curve['Equity'], color='green')

ax1.set_title('Linear Scale Equity Curve')

ax1.set_ylabel('Account Balance ($)')

1# Log scale (truthful)

ax2.plot(equity_curve.index, equity_curve['Equity'], color='green')

ax2.set_yscale('log')

ax2.set_title('Log Scale Equity Curve - Reveals True Risk')

ax2.set_ylabel('Account Balance ($) - Log Scale')

1plt.tight_layout()
2plt.show()

Output explanation: The log scale version highlights periods where the strategy suffered proportionally large losses, even if absolute dollar amounts were smaller early on. This prevents underestimating risk in growing portfolios.

Real-world context: During the 2022 bear market, many traders using linear charts underestimated volatility clustering until it was too late.

Mistake 3: Ignoring Drawdowns and Focusing Only on Total Return

What if your "profitable" strategy actually had multiple 40%+ drawdowns that would wipe out most retail accounts?

Equity curves without maximum drawdown (MDD) visualization hide the emotional and capital toll of trading.

Key Formula:

$Drawdown_t = \frac{Peak Equity_t - Current Equity_t}{Peak Equity_t}$

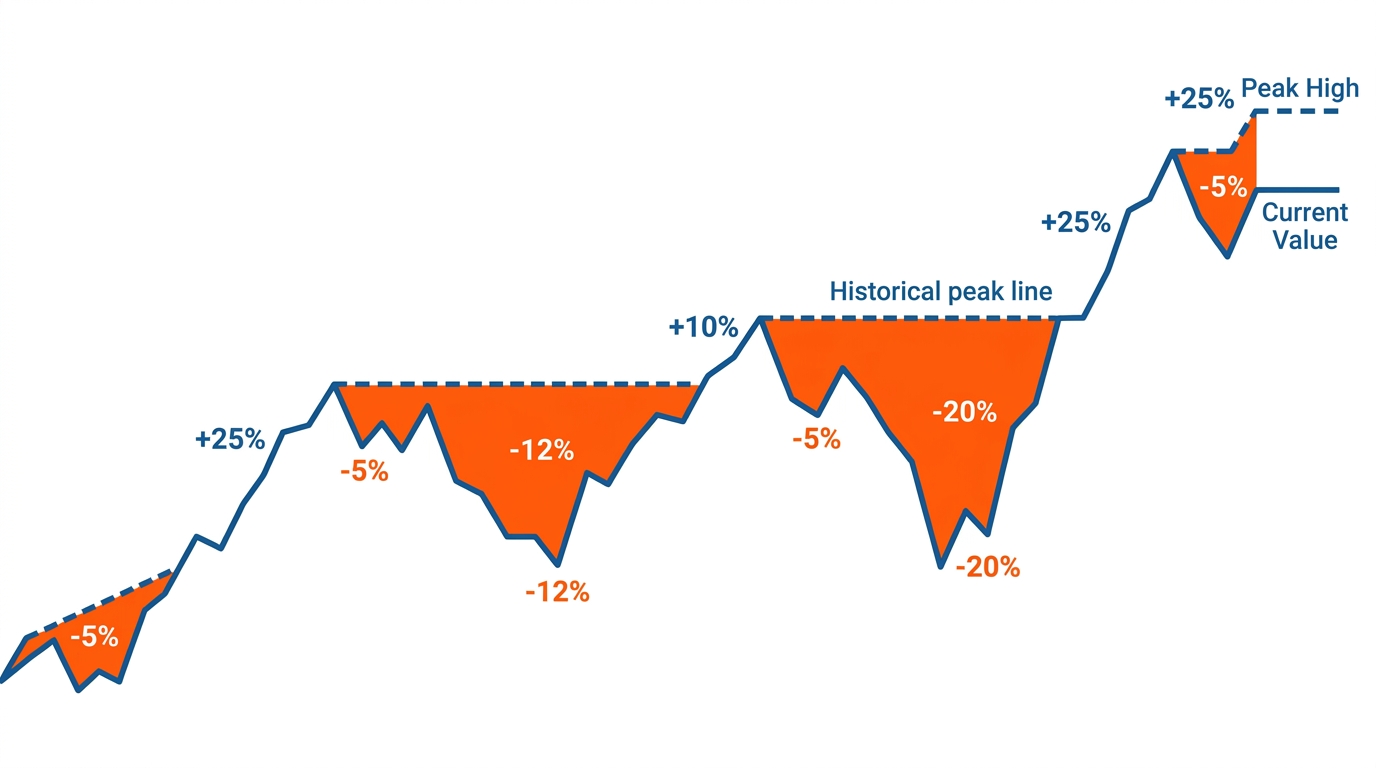

Visualizing Underwater Periods

1# Calculate and plot drawdown
2equity = df['Equity']
3peak = equity.cummax()

drawdown = (equity - peak) / peak * 100

1plt.figure(figsize=(12, 6))
2plt.plot(drawdown.index, drawdown, color='red', linewidth=2)
3plt.fill_between(drawdown.index, drawdown, 0, color='red', alpha=0.3)
4plt.title('Strategy Drawdown Profile (%)')
5plt.ylabel('Drawdown %')
6plt.axhline(y=-20, color='orange', linestyle='--', label='Critical Threshold')
7plt.legend()
8plt.grid(True, alpha=0.3)
9plt.show()

This visualization immediately shows risk concentration and recovery times—crucial for position sizing and risk management.

Mistake 4: Cherry-Picking Time Periods and Survivorship Bias in Charts

Does your backtest only show the best 3-year window while ignoring the full market cycle?

Selective visualization creates false narratives. Always show full history with clear annotations for major events.

1import plotly.graph_objects as go

from plotly.subplots import make_subplots

fig = make_subplots(rows=2, cols=1, shared_xaxes=True,

vertical_spacing=0.1,

row_heights=[0.7, 0.3])

1fig.add_trace(go.Candlestick(x=df.index,
2open=df['Open'], high=df['High'],
3low=df['Low'], close=df['Close']), row=1, col=1)
4
5fig.add_trace(go.Bar(x=df.index, y=df['Volume'], name='Volume'), row=2, col=1)

fig.update_layout(title='Interactive Full-History Candlestick Chart',

xaxis_rangeslider_visible=True,

height=700)

fig.show()

Why it matters: Interactive tools encourage exploration of the entire dataset.

Mistake 5: Poor Color Choices and Accessibility Issues

Using red/green without considering colorblind users can mislead. Use high contrast palettes.

Mistake 6: Static Charts Instead of Interactive Dashboards

Modern algo trading benefits from Plotly and Dash for interactivity.

Mistake 7: Forgetting to Visualize Strategy Metrics Holistically

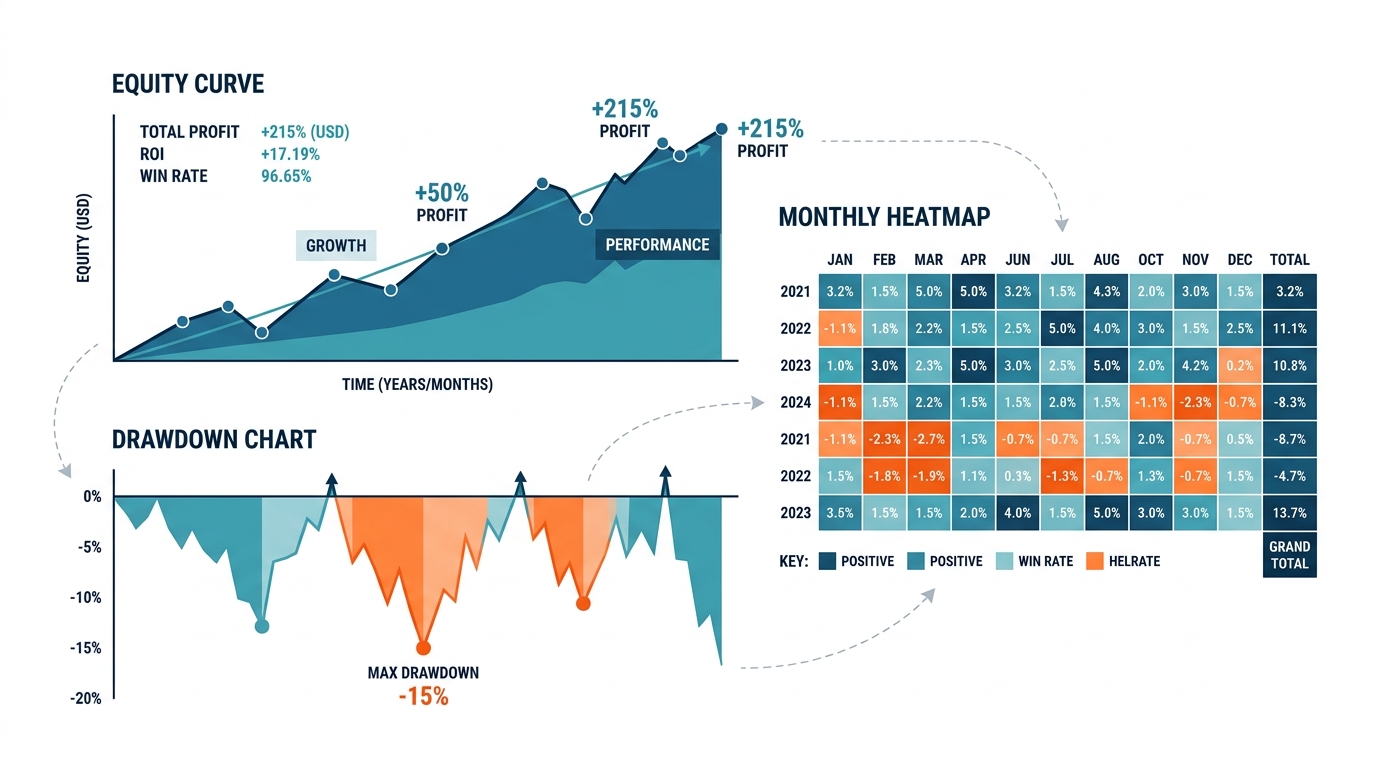

Combine equity curve, drawdown, trade distribution, and heatmaps.

Monthly Returns Heatmap Example

1import seaborn as sns
2
3# Example monthly returns heatmap
4plt.figure(figsize=(12, 8))

sns.heatmap(monthly_returns, annot=True, cmap='RdYlGn', center=0, fmt='.1%')

1plt.title('Monthly Returns Heatmap - Seasonality and Consistency Check')
2plt.show()

Best Practices for Professional Trading Visualizations

• Always start with price action
• Use appropriate scales (log for prices/equity)
• Show full context with annotations
• Prioritize clarity over complexity
• Make it interactive when possible

Key Takeaways

• Clean visualizations prevent costly mistakes.
• Log scales and drawdown charts reveal true risk.

Conclusion

Data visualization mistakes directly impact your bottom line. Audit your charts today and rebuild them with these principles for more robust strategies.

Stay curious and keep visualizing clearly!
